Stability Lens


STABILIZED

RUGGEDIZATION

  •  Minimize Pixel Shift After Shock and Vibration
  •   Robust Mechanics with a Simplified Focus
  •   Elements Glued in Place to Maintain Optical Stability

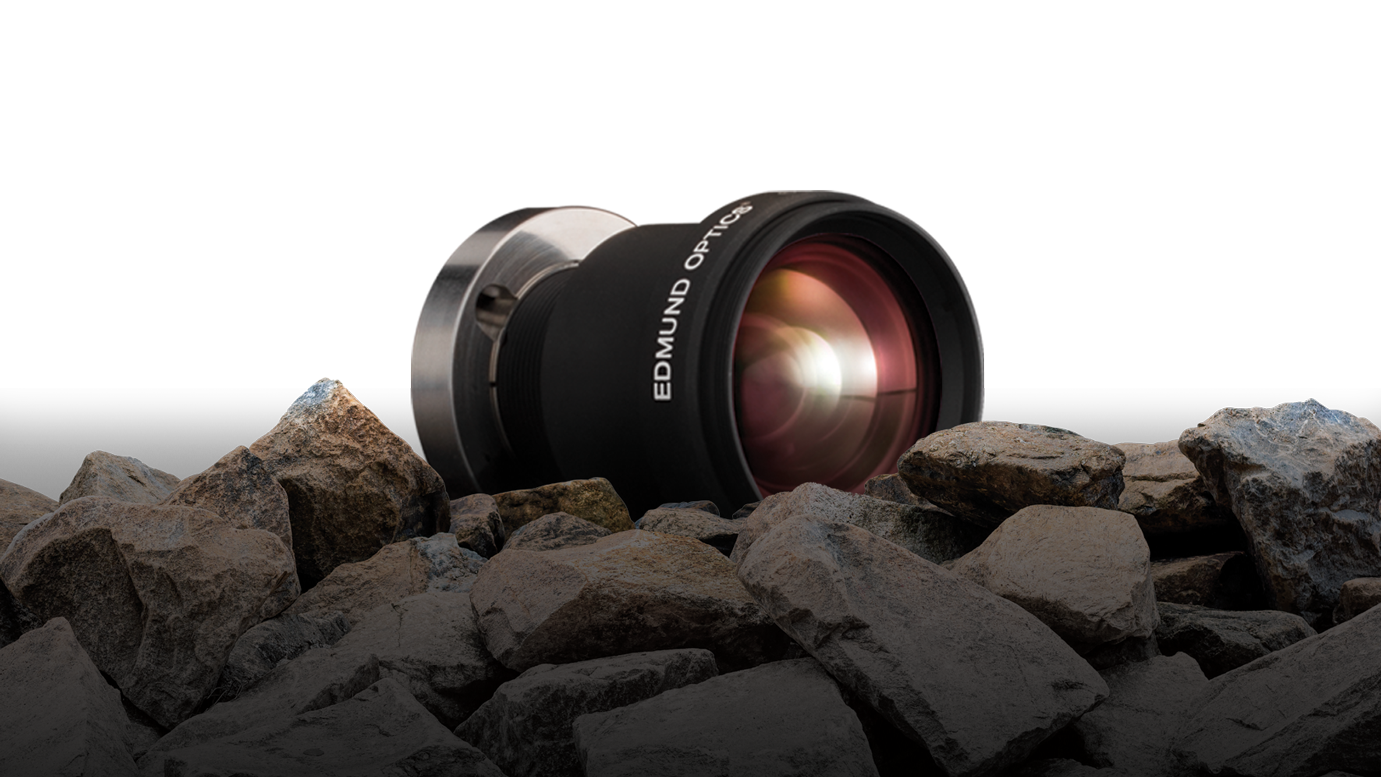

Stabilized ruggedization ensures optical pointing stability and positioning is maintained after shock. In addition to replacing the iris with and a simplified focus mechanism, individual lens elements are glued in place to prevent undesirable motion within the housing.

Why Stability Ruggedization?

STANDARD C SERIES IMAGING LENS
Ruggedized Lenses Line Art

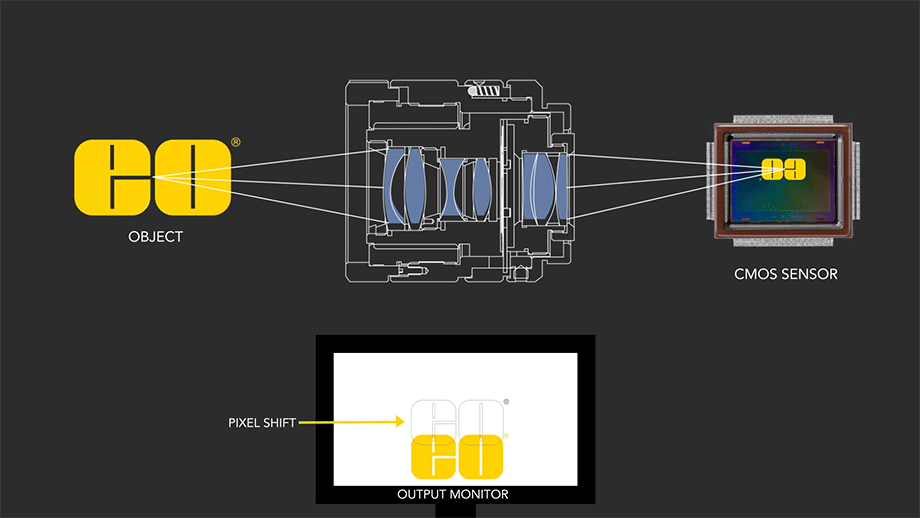

As an imaging system shakes, lens elements decenter and the image produced on the camera sensor also shakes, causing the image to shift onto different pixels. Movement in our C Series Lens exaggerated for illustrative purposes.
RUGGEDIZED Cr SERIES LENS
Ruggedized Lenses Line Art

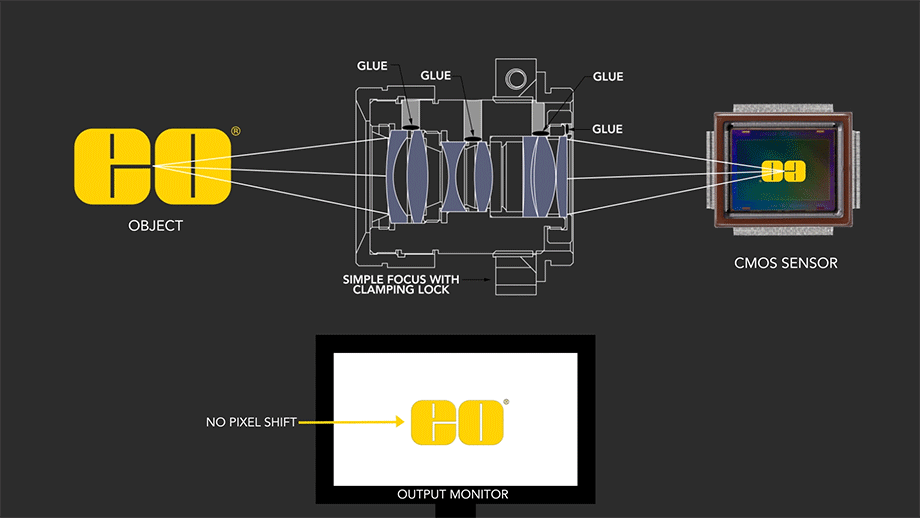

The Stability Ruggedized Cr Series Lenses utilize the same core optical design of the C Series Lenses. However, the Cr Series Lenses minimize pixel shift during shock and vibration by gluing internal lens elements inside the lens barrel, resulting in a stationary image.

Pixel Shift After 50G Shock

comparison of pixel shift after 50G shock

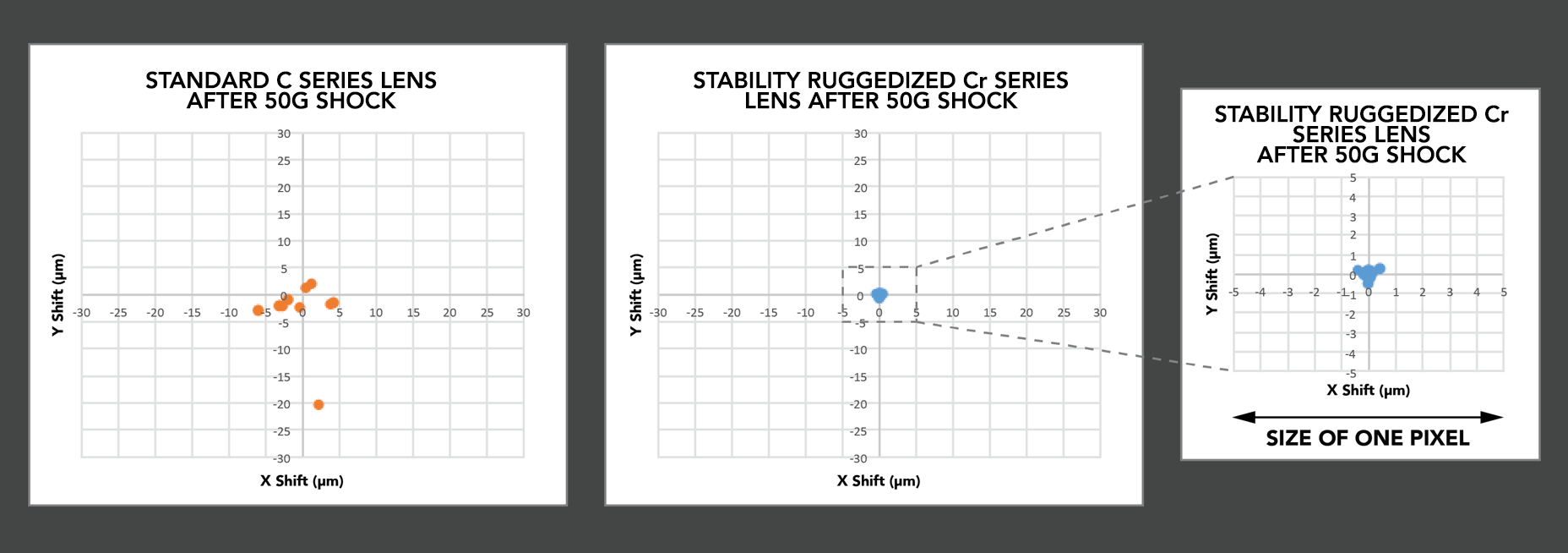

While the C Series Fixed Focal Length Lens (standard imaging lens) on the left performs well, the pixel shift after 50G of shock is more than a pixel. Under the same amount of shock, the Stability Ruggedized Cr Series Lens has less than 1µm of pixel shift – much smaller than the size of a pixel.

Edmund Optics® Stabalized Ruggedized Lenses

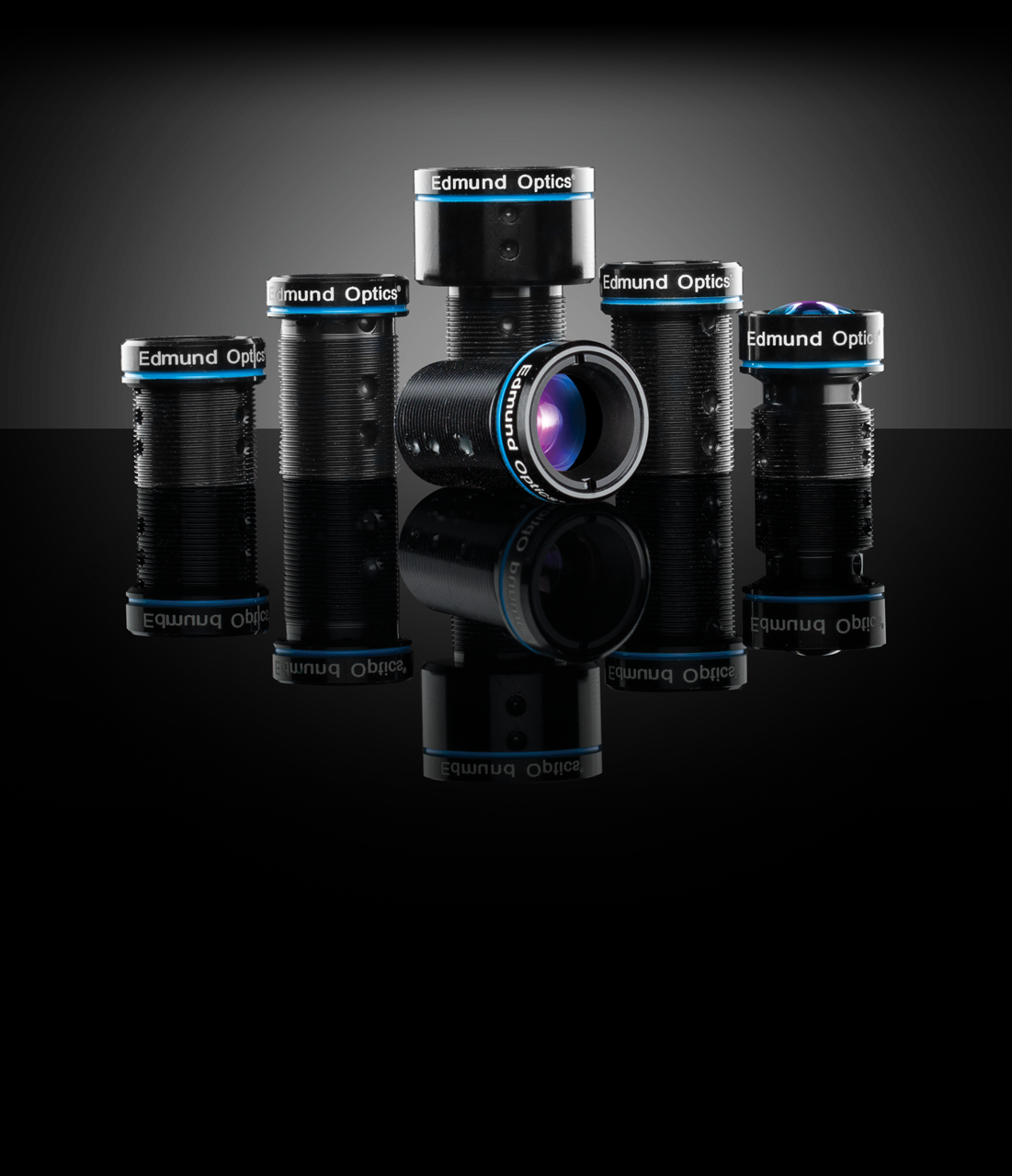

Rugged Blue Series M12 Lensess
  • Up to ½", S-Mount Lens
  • Up to 5 MegaPixels, 1.4µm Pixel Size Sensors
  • Ruggedized Designs (50g Shock) of our Blue Series Lens with Individual Optics Glued in Place
  • 2mm to 25mm Focal Length

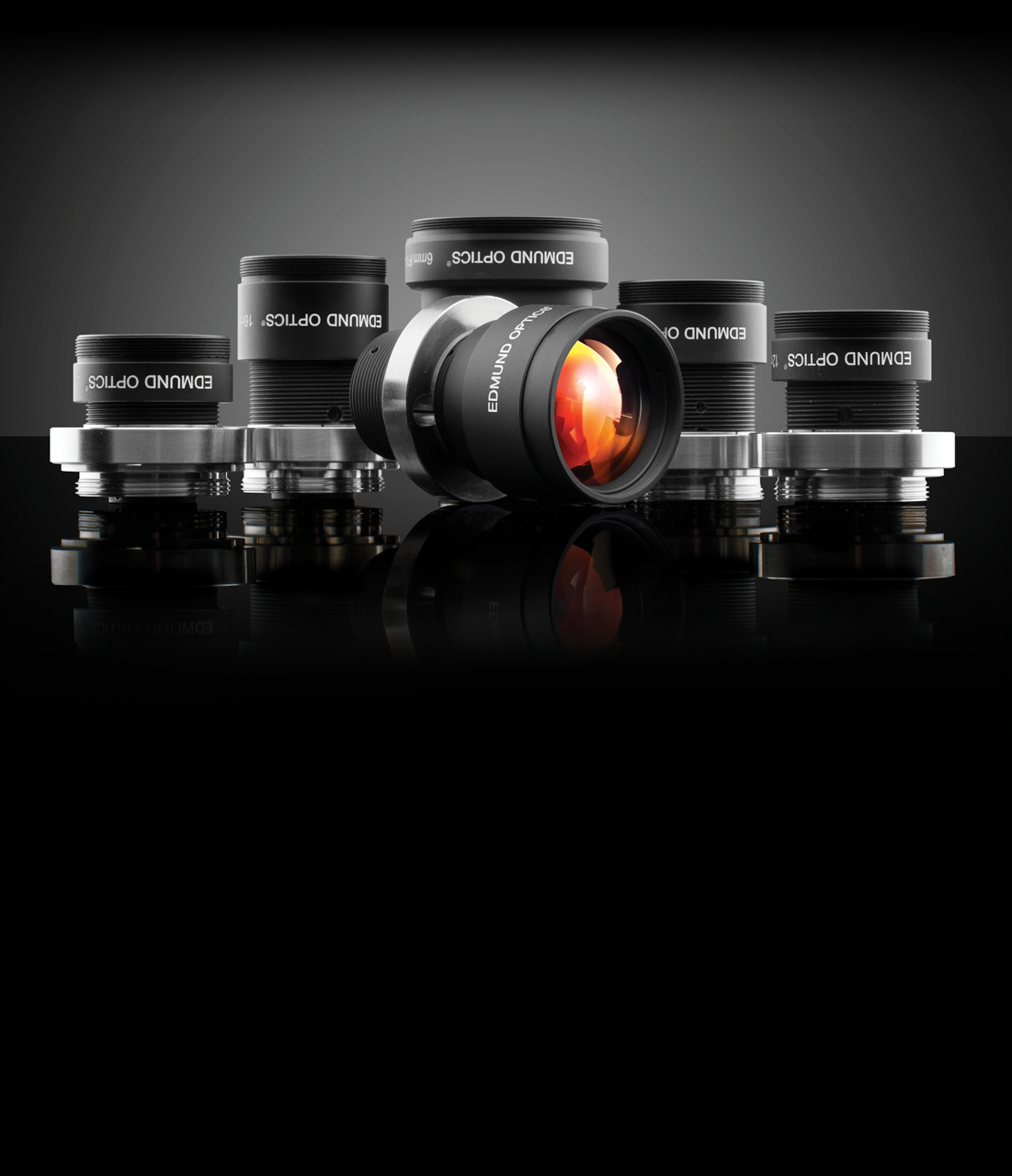

Cr Series Fixed Focal Length Lenses
  • Up to 2/3", C-Mount Lens
  • Up to 7.5 MegaPixels, 2.8µm Pixel Size Sensors
  • Ruggedized (Cr) Designs (50g Shock) of our C Series Lens
  • 3.5mm to 50mm Focal Length

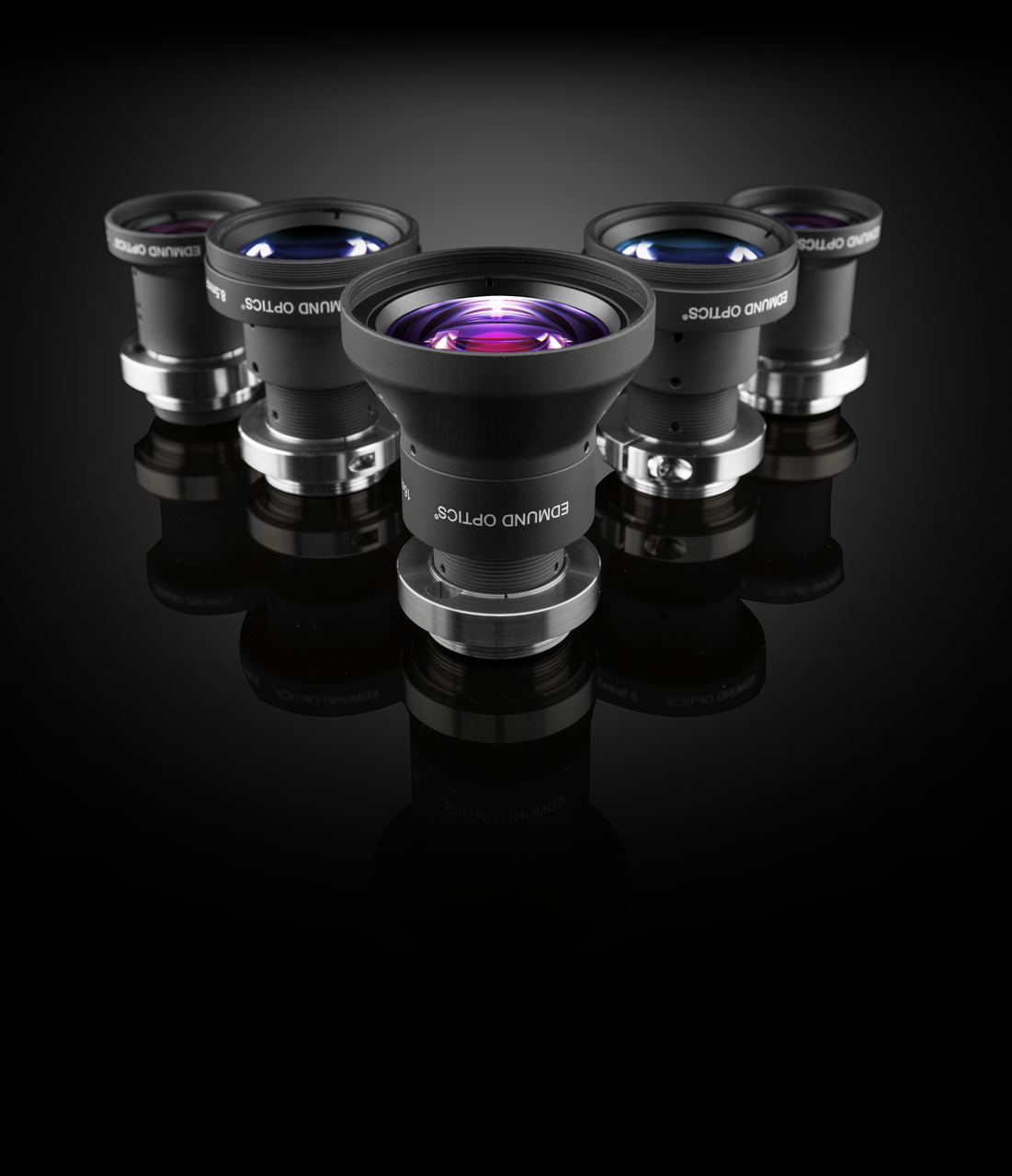

HRr Series Fixed Focal Length Lenses
  • 2/3", C-Mount Lens
  • Up to 9 MegaPixels, 1.85µm Pixel Size Sensors
  • Ruggedized (HRr) Designs (50g Shock) of our HR Series Lens with Individual Optics Glued in Place
  • 8.5mm to 12mm Focal Length
HPr Series Fixed Focal Length Lenses
  • 1.1", C-Mount Lens
  • Up to 20 MegaPixels, 1.85µm Pixel Size Sensors
  • Instrumentation (HPi) versions of our HP Series Lenses with Streamlined Mechanical Designs and Fixed Apertures
  • 16mm to 50mm Focal Length
