Case Study:
Optics for Vision-Guided Cleaning Robots

Created in partnership with Allied Vision.

The future depends on vision-guided technology that can safely sanitize hospitals, warehouses, and other locations to prevent the spread of contagious diseases, like COVID-19, which is caused by the novel coronavirus.

View
COVID-19 Diagnostic
Related
Products
View
COVID-19 Diagnostic
Related Products

Combatting COVID-19
with Machine Vision

Frequent cleaning of high-traffic areas, for instance, hospitals, airports, and public transit systems, is crucial to curtailing the spread of COVID-19. A wave of new vision-guided cleaning robots has been deployed to safely sanitize these locations without putting front-line workers, such as janitorial staff, in harm’s way, simultaneously killing germs and minimizing human contact.

Lidar, a laser-based remote sensing method, or machine vision lenses and cameras allow these robots to navigate through their environment, dodge obstacles, and ensure that all required surfaces have been cleaned. Many such robots sanitize surfaces using ultraviolet (UV) radiation, which destroys the DNA or RNA of viruses when operated at a sufficient optical power.1 At the onset of the COVID-19 outbreak, China introduced thousands of UV-based cleaning robots and this technology has now made its way to other countries. In San Diego, CA, a hospital is disinfecting 30 COVID-19 patient rooms and breakrooms every day using a fleet of robots that are able to completely sanitize a room in 12 minutes; this same task would ordinarily take 90 minutes for human employees to perform.2

Mobile vision-guided cleaning robots reportedly disinfect rooms more thoroughly than humans.2
Mobile vision-guided cleaning robots reportedly disinfect rooms more thoroughly than humans.

Does UV Radiation Really Kill Germs?

UV-C radiation, which covers wavelengths from 100-280nm, has been utilized to disinfect surfaces, air, and water for decades. Research published through the American Chemical Society found that 99.9% of aerosolized coronaviruses similar to COVID-19 were killed when directly exposed to a UV-C lamp.3 The outer proteins of the virus are damaged by these lamps, rendering the virus inactive.

Vision-guided cleaning robots sanitize rooms without the need for any human operators. This is important because UV-C radiation can damage the skin and eyes of those exposed to it. Motion sensors can ensure that the UV sources are turned off if a person comes too close to the robot.

How these Robots “See”

Cleaning robots typically navigate through their environment using either Lidar or 3D machine vision. Incorporating multiple lenses and cameras allows robots to generate 3D images of their environment and accurately gauge distances (Figure 1). The location, optical specifications, and recorded images of each imaging assembly are used to determine depth through triangulation algorithms.

Like our two separate eyes allow us to see in 3D, stereoscopic vision allows vision-guided robots to “see” their environment in 3D.
Figure 1: Like our two separate eyes allow us to see in 3D, stereoscopic vision allows vision-guided robots to “see” their environment in 3D.

Using multiple lenses and cameras can quickly make a system very large and heavy, so compact solutions are critical for practical robots. Small M12 imaging lenses and compact cameras are ideal for reducing bulk while maintaining performance. Ruggedization to protect lenses from shocks, vibrations, or humidity can also be beneficial for long-term performance sustainability.

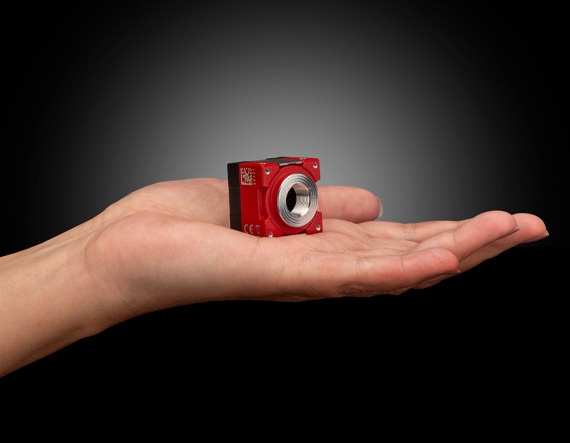

Allied Vision ALVIUM® USB 3.1 Cameras are compact and ideal for weight-sensitive vision-guided robotics.
Figure 2: Allied Vision ALVIUM® USB 3.1 Cameras are compact and ideal for weight-sensitive vision-guided robotics.

Impact of Vision-Guided Robotics During and After COVID-19

In addition to cleaning, vision-guided robotics are improving safety in other areas including the restaurant industry, which has suffered significantly during the COVID-19 outbreak and resulting shutdowns. Robots can minimize human-to-human interaction in restaurant settings, particularly fast food, where they can perform repetitive tasks such as food preparation and serving. However, robots offer far fewer potential benefits for fine dining, as the subtle details, critical for each dish and connecting with customers, often require a human touch.4

The vision-guided cleaning robots deployed to combat COVID-19 likely will not disappear once this crisis has ended. The added safety and efficiency they offer will continue to be beneficial to hospitals and other high-traffic spaces, so do not be surprised if you spot more robotic coworkers in the future.

References

  1. Reed, N. (2010). The History of Ultraviolet Germicidal Irradiation for Air Disinfection. Public Health Reports, 125(1), 15-27. doi:10.1177/003335491012500105
  2. Lerman, R. (2020, September 8). Robot cleaners are coming, this time to wipe up your coronavirus germs. The Washington Post.
  3. Abajo, F. J., Hernández, R. J., Kaminer, I., Meyerhans, A., Rosell-Llompart, J., & Sanchez-Elsner, T. (2020). Back to Normal: An Old Physics Route to Reduce SARS-CoV-2 Transmission in Indoor Spaces. ACS Nano, 14(7), 7704-7713. doi:10.1021/acsnano.0c04596
  4. Carroll, J. (2020, June 5). Could vision-guided robots be key to keeping the restaurant industry afloat? Vision Systems Design. Retrieved October 8, 2020, from https://www.vision-systems.com/home/article/14175802/could-visionguided-robots-be-key-to-keeping-the-restaurant-industry-afloat
Was this content useful to you?

Related Edmund Optics Products

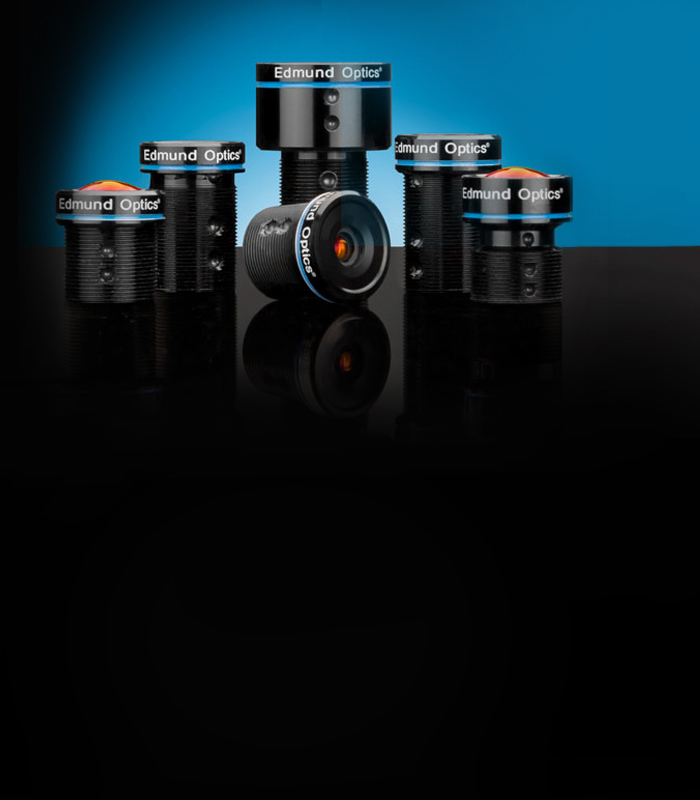

Rugged Blue Series M12 Lenses
TECHSPEC

Rugged Blue Series M12 Lenses

  • Ruggedized Versions of our Blue Series M12 Lenses
  • Ruggedized to Reduce Pixel Shift and Maintain Optical Pointing Stability
  • High Resolution Designs Optimized for Machine Vision Working Distances
View Now

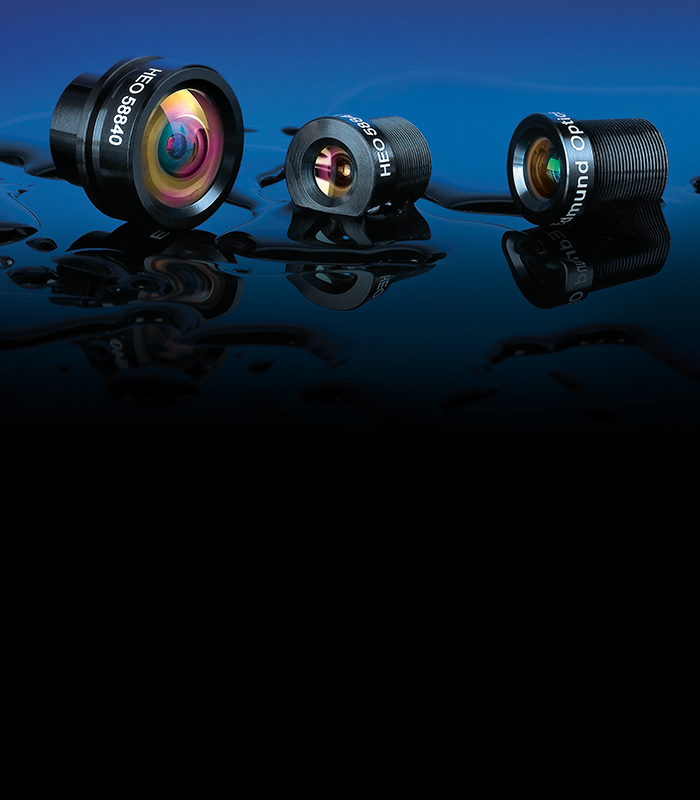

HEO Series M12 Imaging Lenses
TECHSPEC

HEO Series M12 Imaging Lenses

  • Harsh Environment Optics (HEO) Sealed Designs
  • Optimized for Infinite Conjugate Systems
  • Weatherproofed Housing




View Now

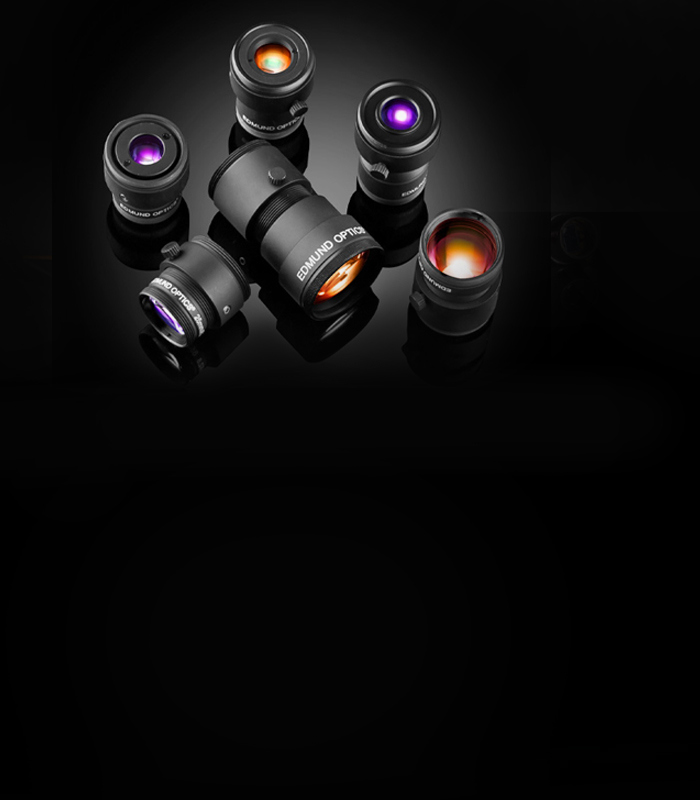

Ci Series Fixed Focal Length Lenses
TECHSPEC

Ci Series Fixed Focal Length Lenses

  • Compact Instrumentation (Ci) Versions of our C Series Lenses
  • Streamlined Designs for Instrumentation Integration
  • Wide Range of Fixed Aperture Options




View Now

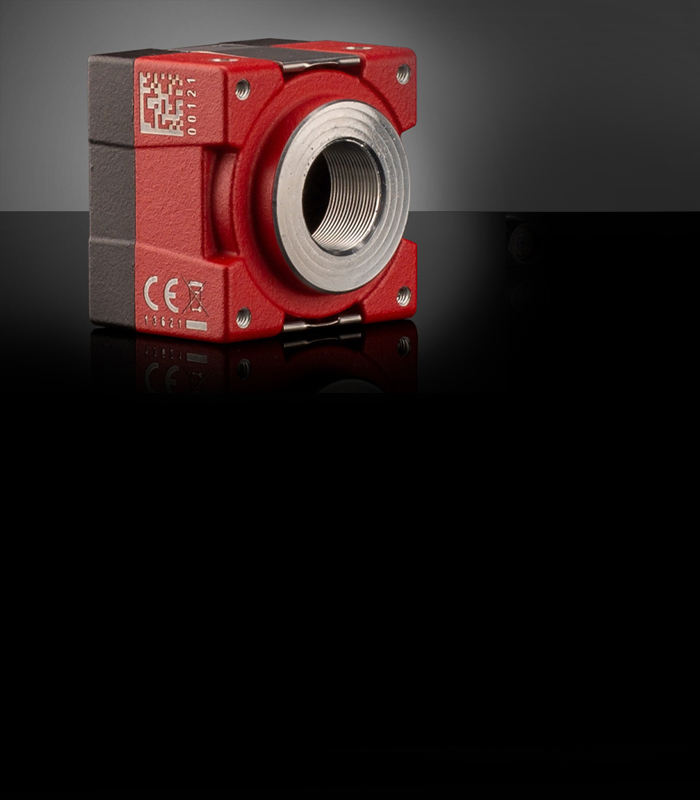

Allied Vision ALVIUM® USB 3.1 Cameras

Allied Vision ALVIUM® USB 3.1 Cameras

  • Ultra-compact, Low Cost, High Performance Design for Machine Vision and Embedded Applications
  • ALVIUM® System on Chip (SoC) Technology with Onboard Imaging Preprocessing
  • Up to 20.2 MegaPixels, 1.1” Sensor Format





View Now

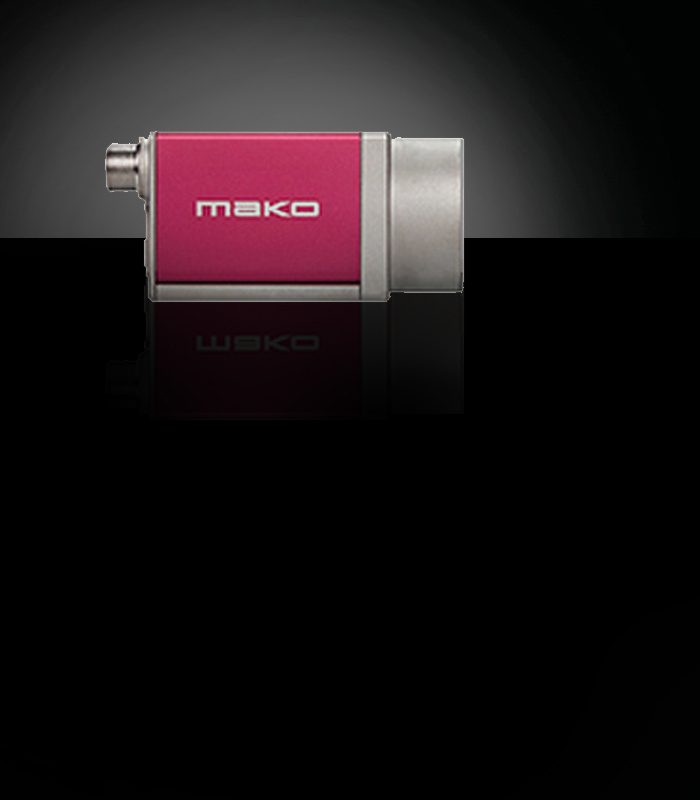

Allied Vision Mako Power over Ethernet (PoE) Cameras

Allied Vision Mako Power over Ethernet (PoE) Cameras

  • Compact Housing with Form Factor of 60.5 x 29 x 29mm
  • GigE Vision interface with Power over Ethernet (PoE) and Trigger over Ethernet (ToE)
  • Popular CMOS Sensors up to 5.1 MegaPixels
  • Screw Locks Ensure Safe Electrical Connections





View Now

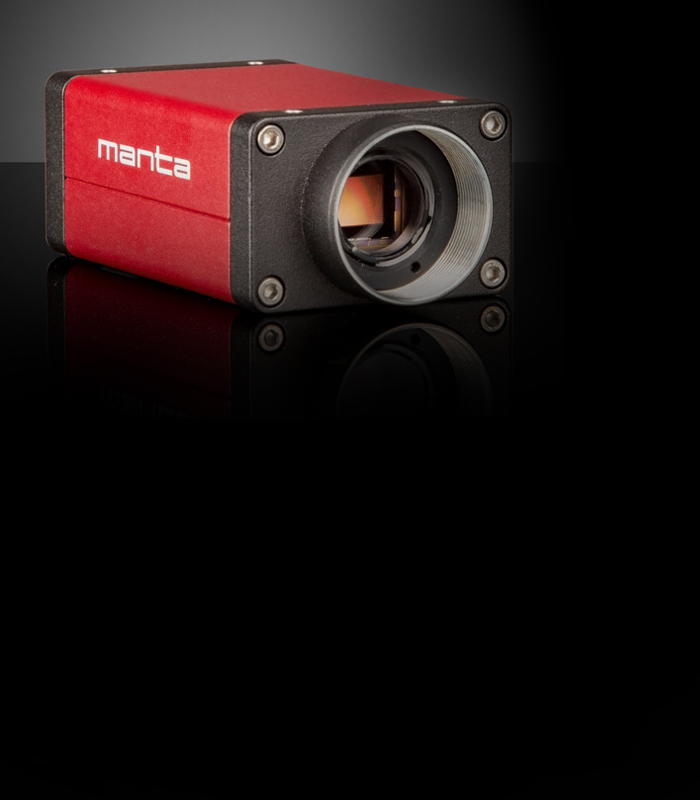

Allied Vision Manta PoE Cameras

Allied Vision Manta PoE Cameras

  • Up to 128MB of Onboard Memory
  • Popular CMOS sensors up to 12.4 MegaPixels
  • GigE Vision Interface with Power over Ethernet (PoE) Option and Trigger over Ethernet (ToE)
  • Screw Locks Ensure Safe Electrical Connections





View Now

Resources

 Application Note

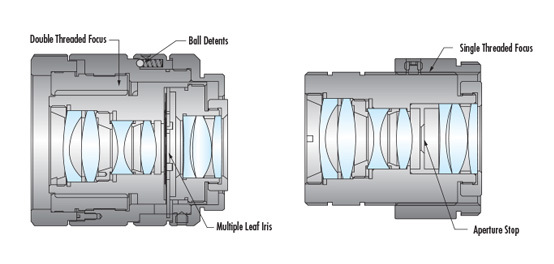

Ruggedization of Imaging Lenses
Ruggedization of Imaging Lenses
 Application Note
Imaging Electronics 101: Basics of Digital Camera Settings for Improved Imaging Results
Imaging Electronics 101: Basics of Digital Camera Settings for Improved Imaging Results
 Application Note

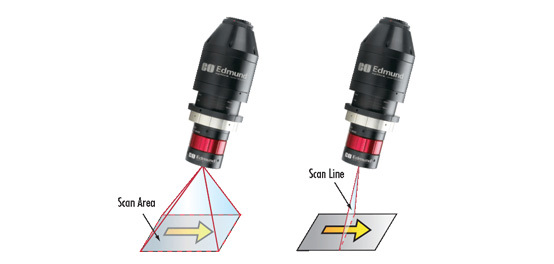

Imaging Electronics 101: Camera Types and Interfaces for Machine Vision Applications
Imaging Electronics 101: Camera Types and Interfaces for Machine Vision Applications
 Application Note
Imaging Electronics 101: Understanding Camera Sensors for Machine Vision Applications
Imaging Electronics 101: Understanding Camera Sensors for Machine Vision Applications
 Application Note

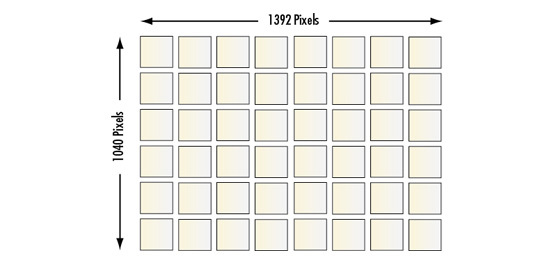

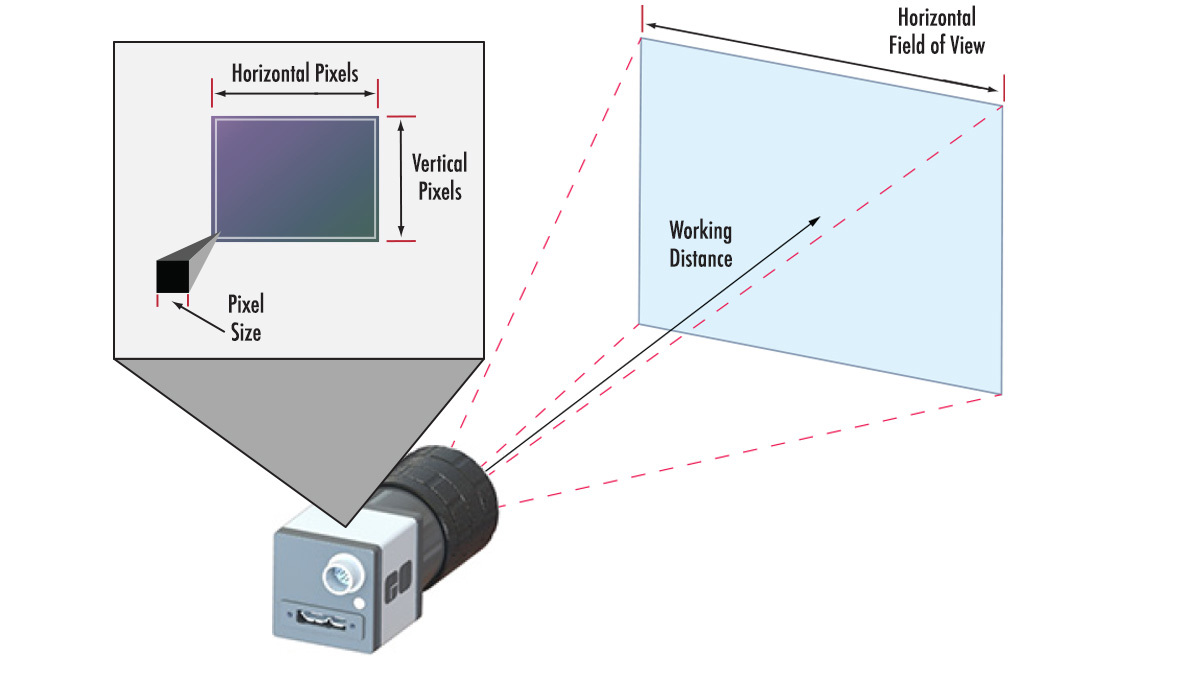

Imaging Electronics 101: Camera Resolution for Improved Imaging System Performance
Imaging Electronics 101: Camera Resolution for Improved Imaging System Performance
 Technical Tool
Imaging Lens Selector
Imaging Lens Selector
 Video

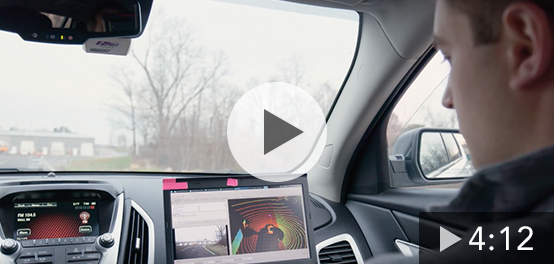

Victor Tango AutoDrive: Edmund Optics
